Mirror finish CNC EDM Machine

TJ-640H Mirror Finish Sinker EDM Machine

TJ-640H Mirror Finish Sinker EDM Machine

Axis X/Y/Z NC control movation; Repeated positioning accuracy:below 0.003mm; Advantage:Mirror surface effect molding on cavity of mold; Molding roughness: Ra<0.1um; fast processing speed,low loss of electrode,stable discharge,high precision.

1:The product is constantly being developed and updated,and the latest information shall prevail.

2:The product parameters are standard configurations.For other configurations,please call to inquire.

Order Hotline:+86 136 8667 3830
  • Product Parameters
  • Application Area
  • Product Characteristics

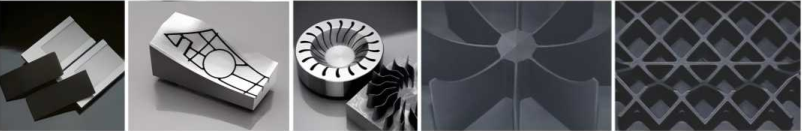

  • Processing Workpiece


ItemSpecifications
 working sink size(L*W*H)1600*900*500mm
worktable size(L*W)900*500mm
x/y/z axis stroke (mm)
600*400*400mm
distance from spindle end to table 400-800mm
Max weight of electrode150kg
Max work load on worktable1800kg
Machine dimensioin(L*W*H)2700*2700*2700mm
machine weight4000kg
capacity of working fluid tank 400L
Positioning accuracy+/-0.005mm
repeatable positioning accuracy+/-0.003mm
size Processing tolerance+/-5 um
Optimal finish roughness

Ra<0.1um, VDI 0# Pattern


References for export packaging,3 cases Loaded to a 40HQ Container.


ItemPlywood case No.Size (L*W*H)/mmWeight
cast structure

1

2300*2770*25003500
electrical cabinet21180*620*1950250
working tank31800*1500*1950250


The specifications of this machine are subject to change without prior notice as the quality improves. Taijet reserves the right of final interpretation. For more information, please contact the corresponding sales staff.
