Mirror finish CNC EDM Machine

TJ-450H Mirror Finish Sinker EDM Machine

TJ-450H Mirror Finish Sinker EDM Machine

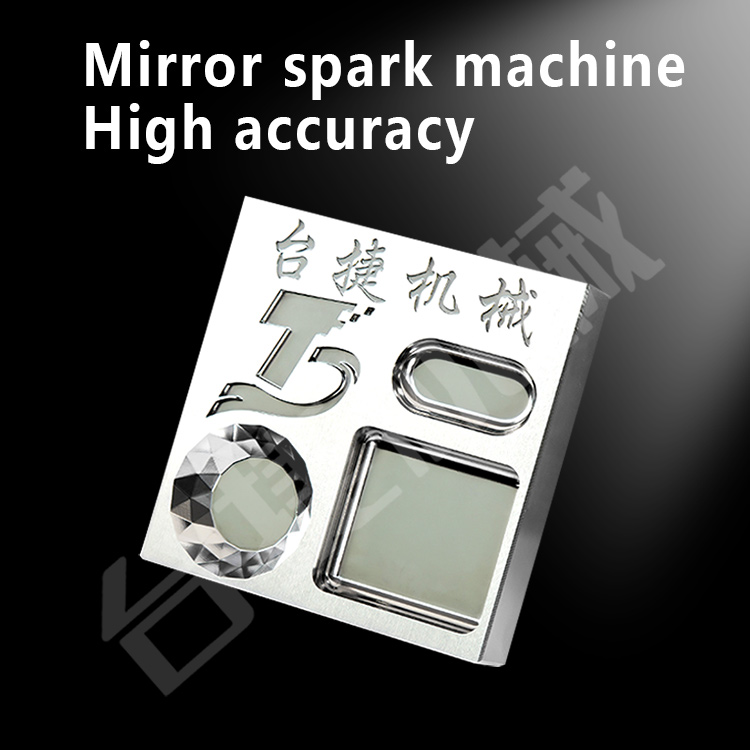

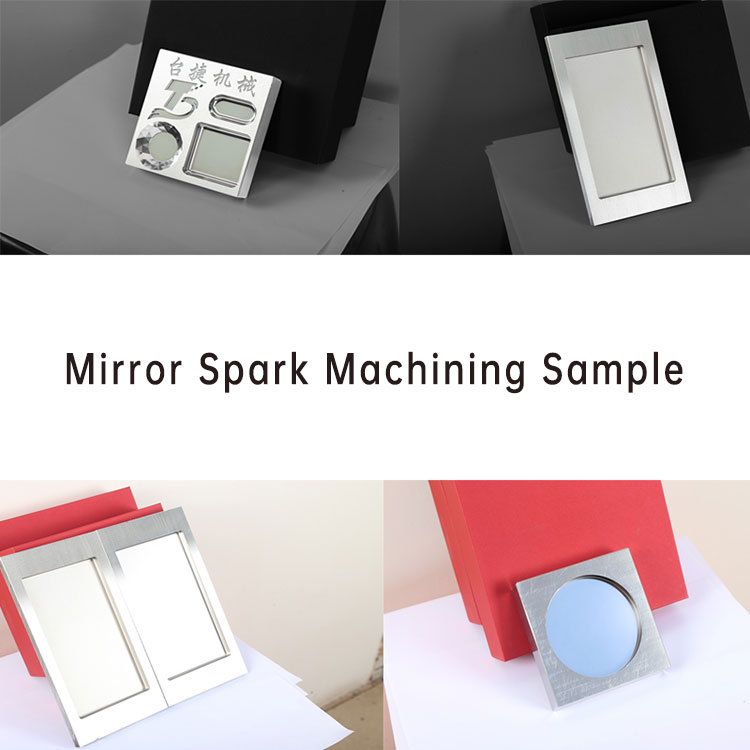

3 Axis X/Y/Z CNC control motion; optional 4t Repeated positioning accuracy:<+/-3um; Advantage:Mirror finish optimal finish roughness: Ra<0.1um; High speed,low loss of electrode,stable discharge,high precision.

1:The product is constantly being developed and updated,and the latest information shall prevail.

2:The product parameters are standard configurations.For other configurations,please call to inquire.

Order Hotline:+86 136 8667 3830
  • Product Parameters
  • Application Area
  • Product Characteristics

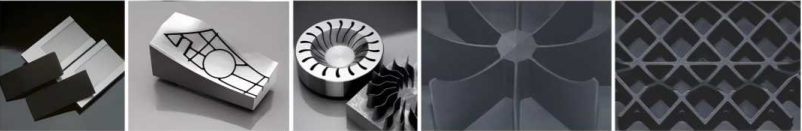

  • Processing Workpiece

Machine parameters

ItemSpecifications
 working sink size(L*W*H)980*630*410mm
worktable size(L*W)700*400mm
x/y/z axis stroke (mm)
450*350*300mm
distance from spindle end to table 330-630mm
Max weight of electrode50kg
Max work load on worktable500kg
Machine dimensioin(L*W*H)1980*2030*2250mm
machine weight2750kg
capacity of working fluid tank 400L
Positioning accuracy+/-0.005mm
repeatable positioning accuracy+/-0.003mm
size Processing tolerance+/-5 um
Optimal finish roughness

Ra<0.1um, VDI 0# Pattern


References for export packaging

ItemPlywood case No.Size (L*W*H)/mmWeight
cast structure

1

2160*1640*24702250
electrical cabinet21180*620*1950250
working tank31400*1100*1950200


The specifications are subject to change without prior notice as the quality improves. Taijie Company reserves the right of final interpretation. For more information, please contact the corresponding sales staff.
