PRODUCTS

Medium to high-end intelligent equipment service provider

Vertical Type Machining Center

VMC-855 Hardware Mould Machining Center

VMC-855 Hardware Mould Machining Center

Machining center machine tools

1:The product is constantly being developed and updated,and the latest information shall prevail.

2:The product parameters are standard configurations.For other configurations,please call to inquire.

Order Hotline:+86 136 8667 3830
  • Product Parameters

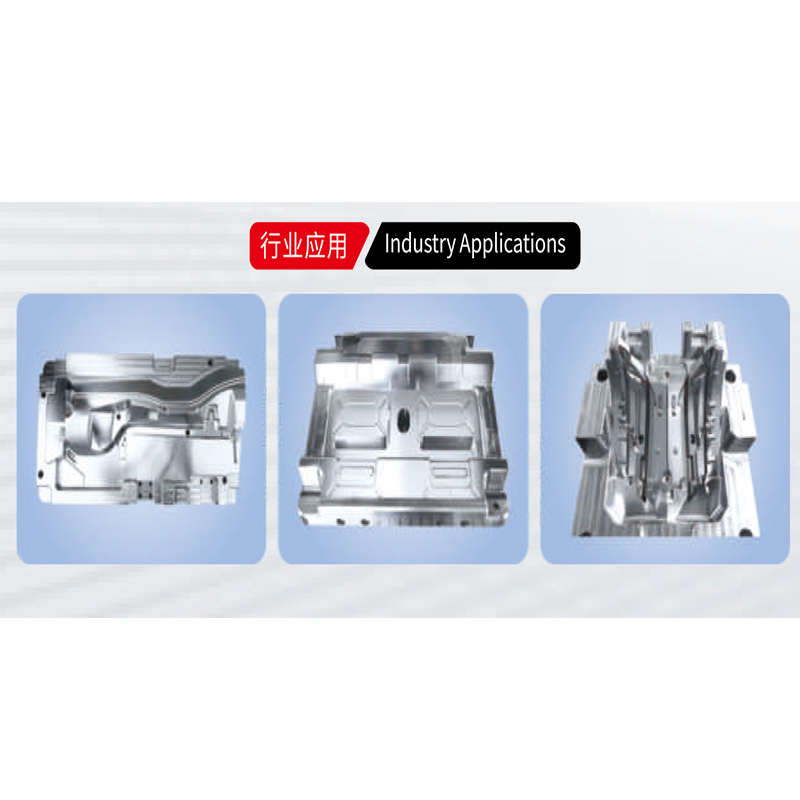

  • Application Area
  • Product Characteristics
  • Processing Workpiece

The basic parameter of the vertical machining center VMC855

3-axis travel:800*550*550mm

table size:1000*550mm

table load:550kg

T slot:5-18*100

spindle nose to table:125-675mm,

coupling type:direct coupling

spindle:BT40 12000RPM

Spindle power:7.5/11 kw

3-axis servo motor:3/3/3 kw

3 axis fast displacement:36/36/36 M/min

cutting rate:1-12000 mm/Min

ATC type:Disc type

Tool capacity:24Tools

power apparent:20KVA

Air pressure demand: at least 6kgf/cm2

footprint:2700*3100*2700mm

machine weight:5.8Tons


*The specifications of this machine are subject to change without prior notice as the quality improves. Taijet reserves the right of final interpretation. For more information, please contact the corresponding sales staff.
